Analysis software

Velocity

Purpose-built telemetry analysis for professional motorsport, intuitive for drivers and coaches and deep enough for every question an engineer asks. Highly performant even on weaker hardware, with extensive interactive visualizations, a powerful math channel and event engine, cloud integration and AI integration for Claude and ChatGPT.

Download Velocity Compare plans

Extensive interactive visualizations

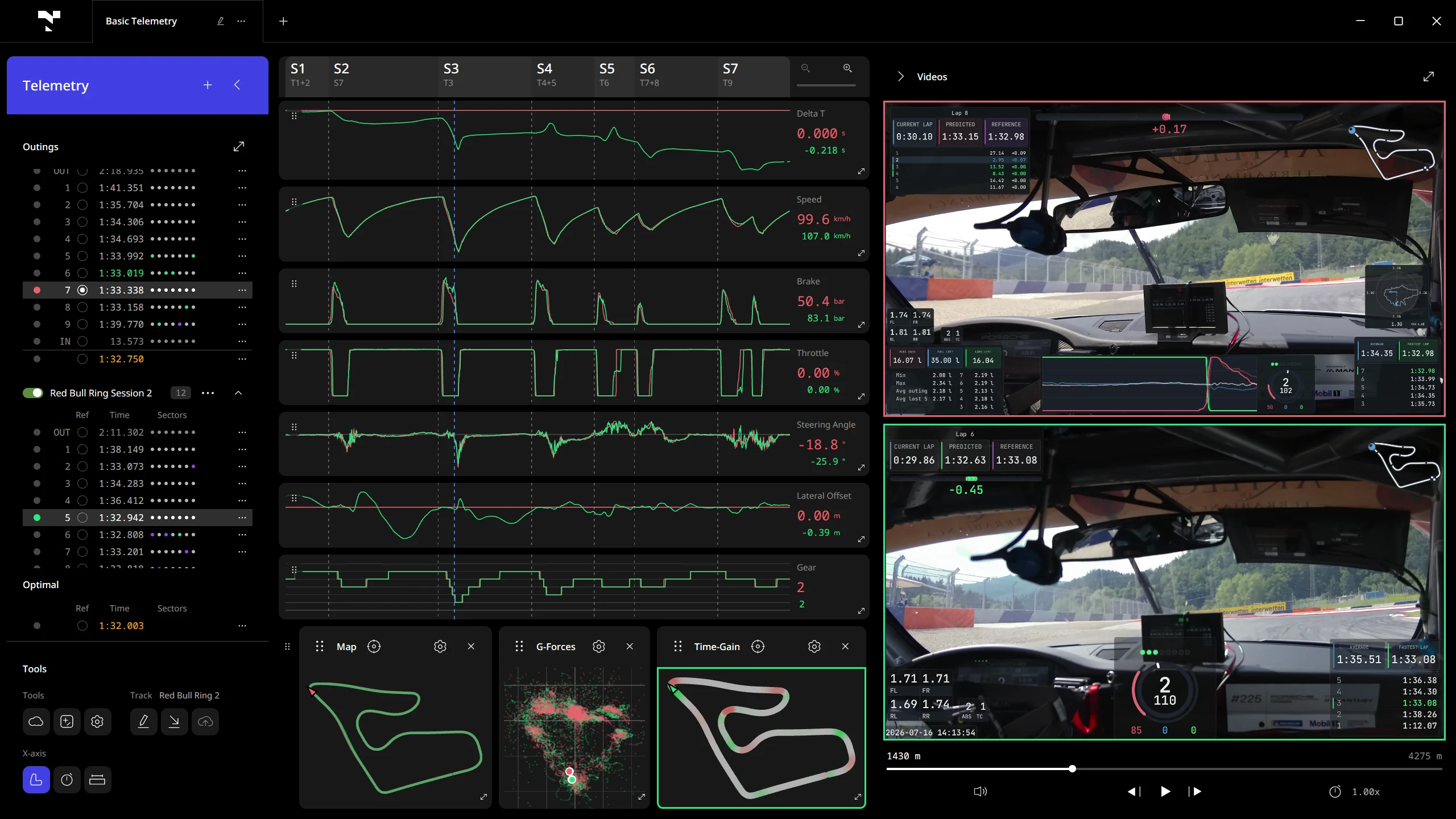

Plots, track maps, lap tables, histograms, scatter and G-force plots, readouts and synchronized video. Every view is fully interactive and follows the same cursor.

  • Choose between multiple cursor types Compare laps by their position on track, by travelled distance or by laptime.

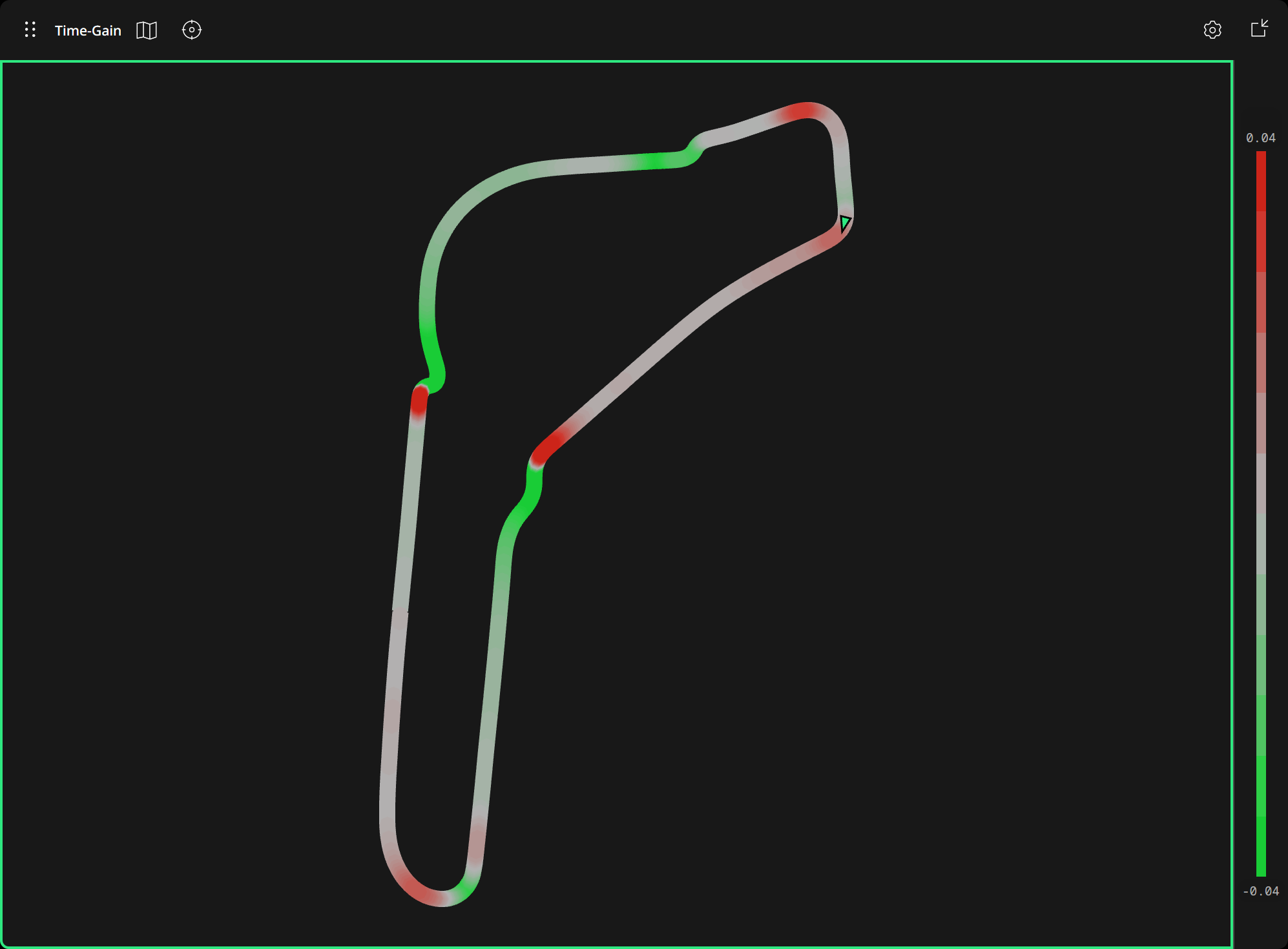

  • Track maps Powerful track map visualizations. Compare the cars' positioning or visualize data, so you can see at a glance where the time is won.

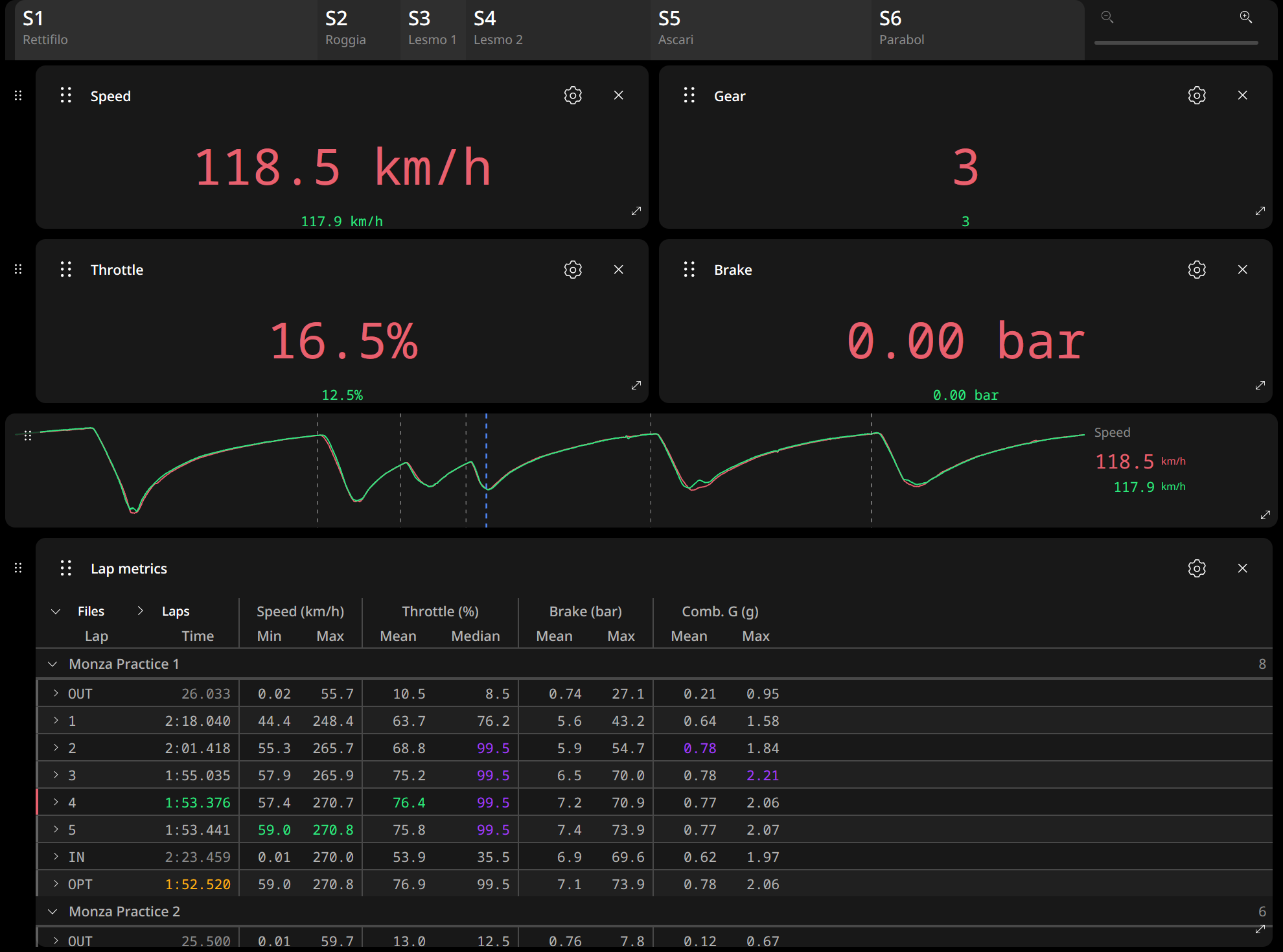

  • Tables and value widgets Analyze complex metrics, by lap and by sector.

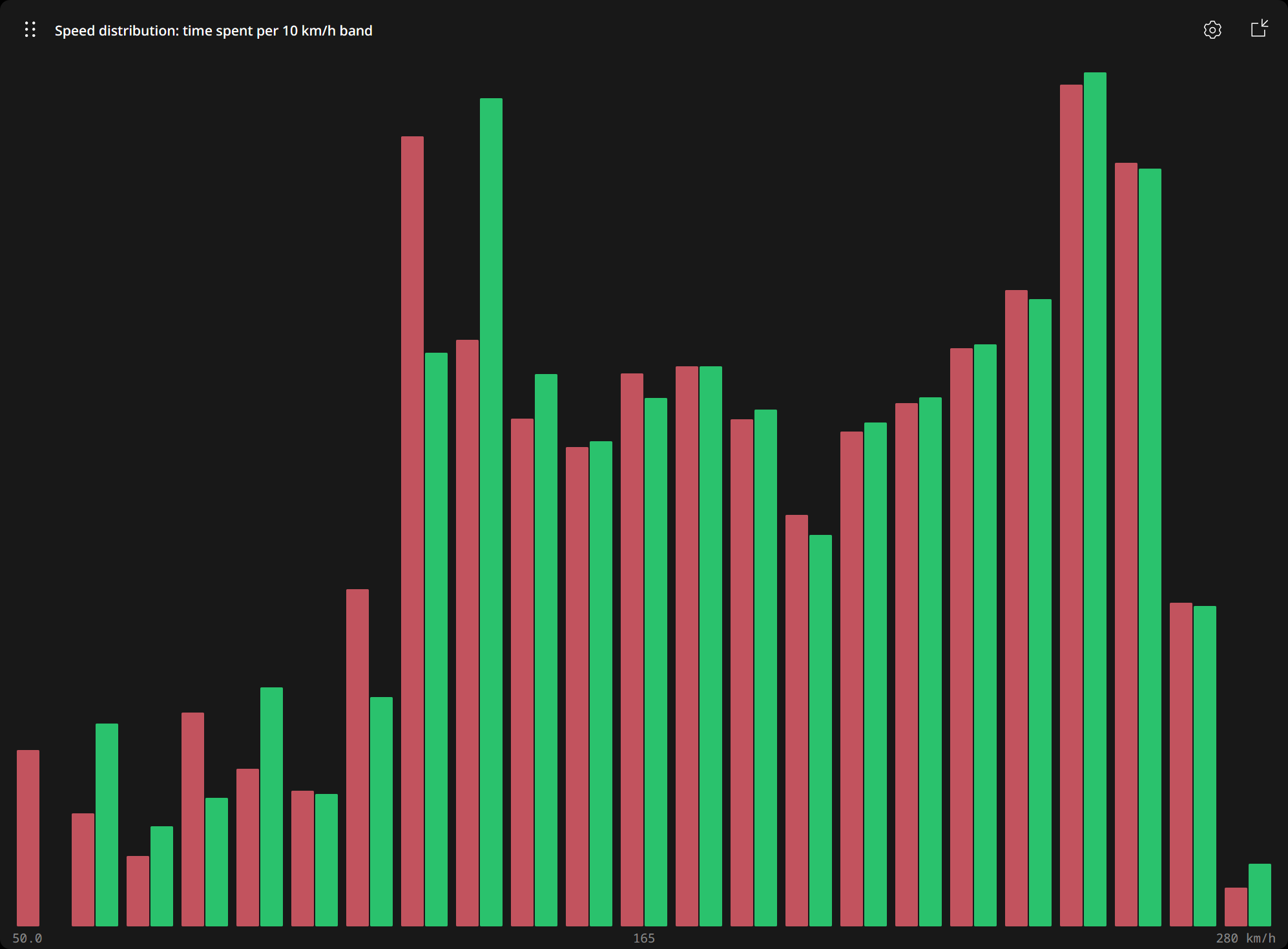

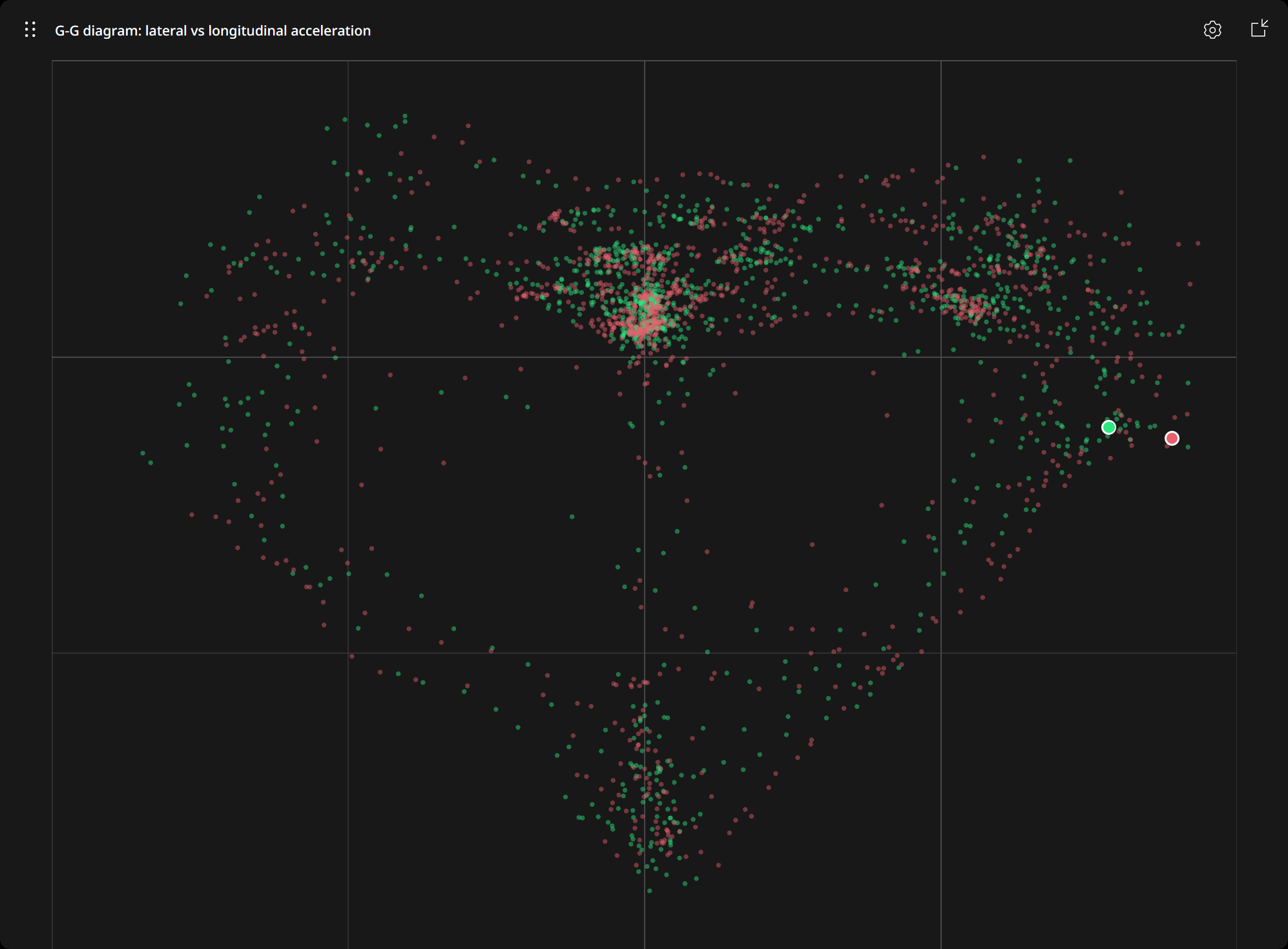

  • Histograms, scatter and G-force plots Visualize multidimensional data and make connections visible.

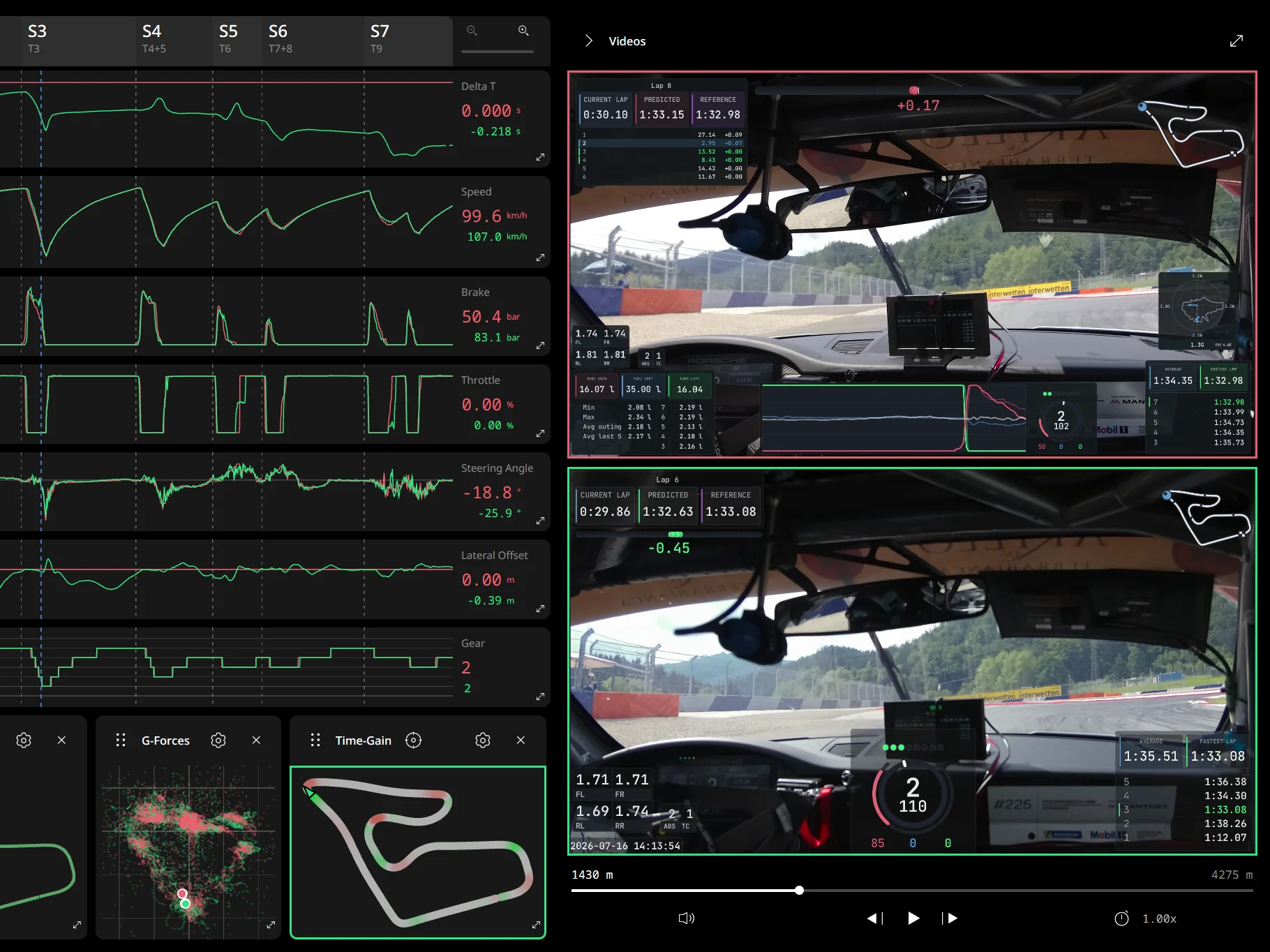

  • Synchronized video Onboard video, always in sync with your data.

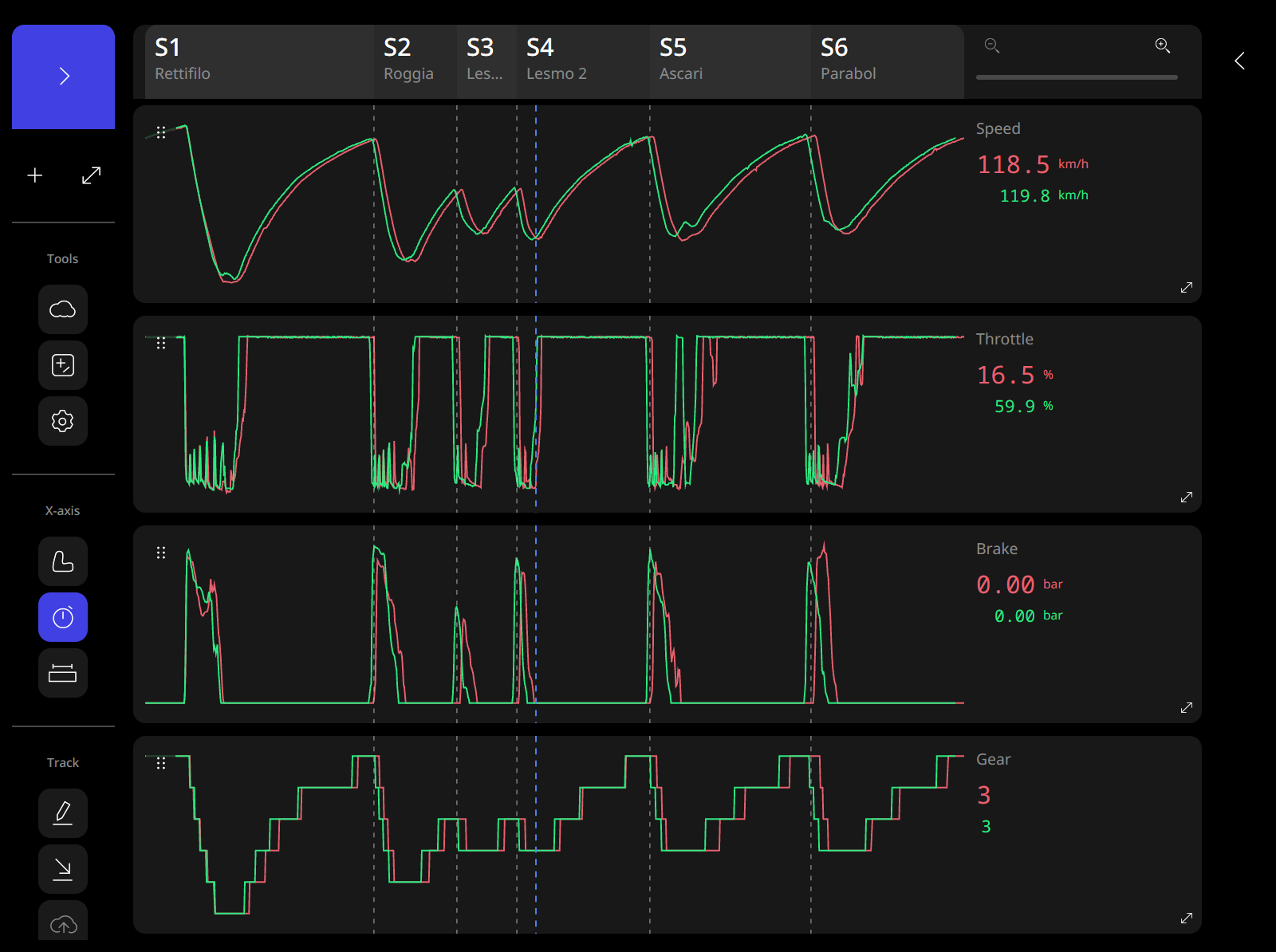

Velocity with lap time selected as the X-axis in the tools sidebar, beside speed, throttle, brake and gear plots of two Monza laps under six named sector bands.

Laps, sectors and track definitions

Velocity splits every outing into laps and sectors from a track definition, so comparisons line up sector by sector.

  • Optimal laps

    The best sectors combined into an optimal lap, per file and across everything loaded.

  • Reference laps

    Pick a reference lap and compare every other lap against it.

  • Track definitions

    Define tracks based on your laps, automatically built for your car and the conditions.

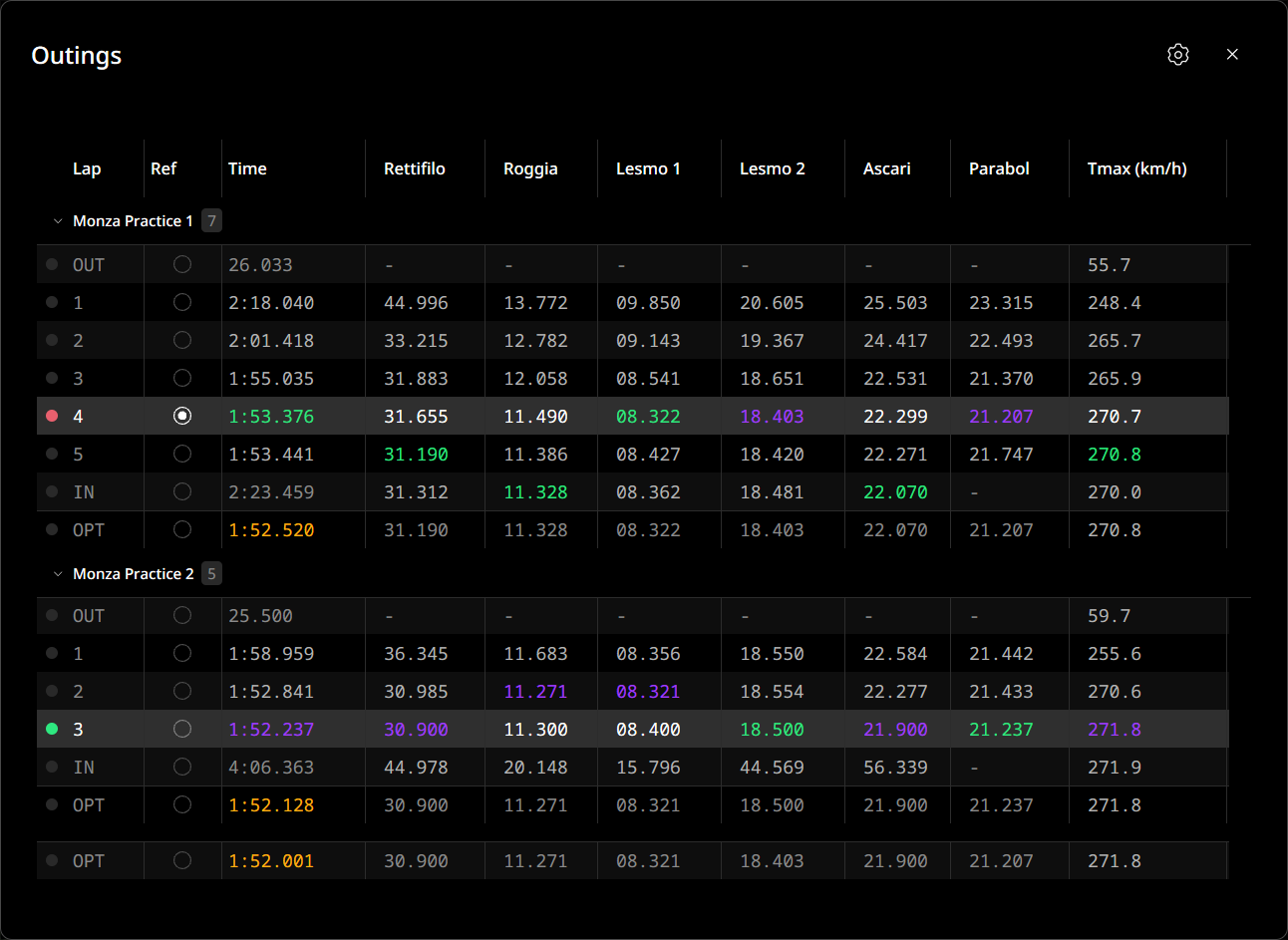

Velocity lap details table for two Monza outings with lap times, six named sector times and top speed.
Lap details Lap and sector times, optimal laps and metrics for every lap.

Powerful math channel and event engine

Describe a calculation or a condition once, and Velocity applies it to every lap of every outing.

  • Math channels Derive new channels from existing ones, with units, a live preview and a reusable library.

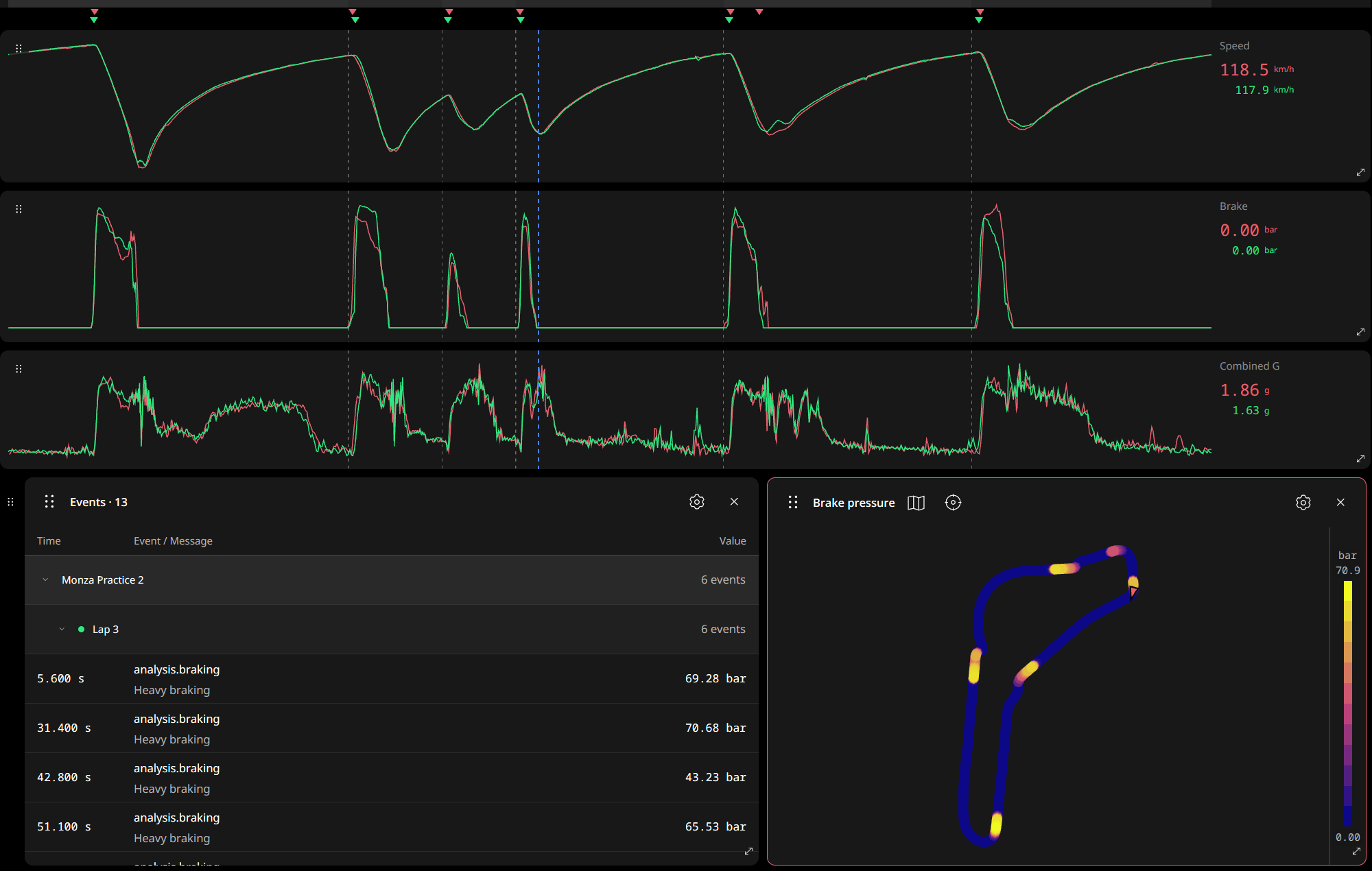

  • Event detectors Find every moment a condition is met, and list the events for each outing.
  • Script settings Named values with units, set globally or per page, so one script fits every car.

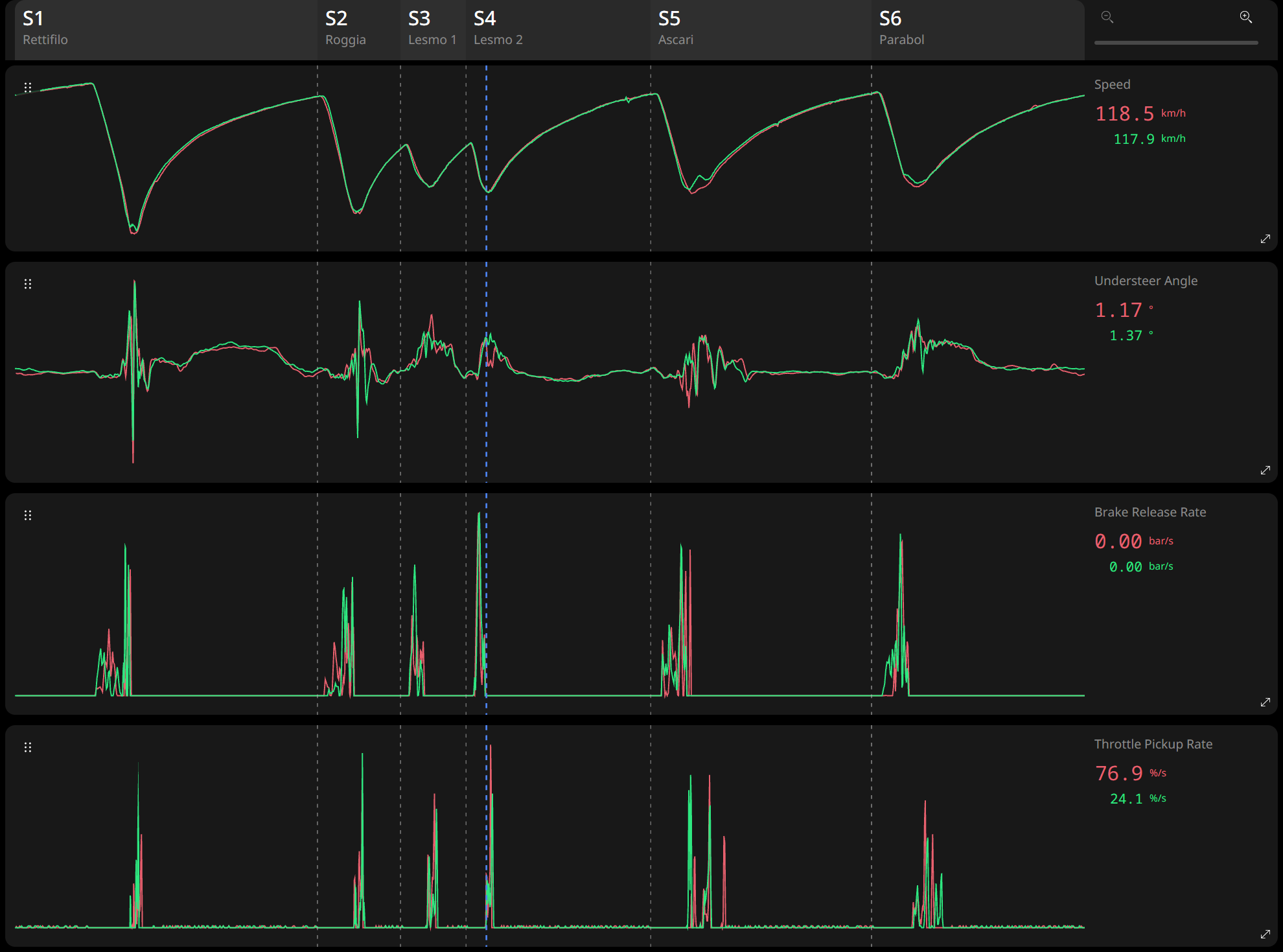

Velocity plots of speed and the math channels Understeer Angle, Brake Release Rate and Throttle Pickup Rate for two Monza laps, under six named sector bands.

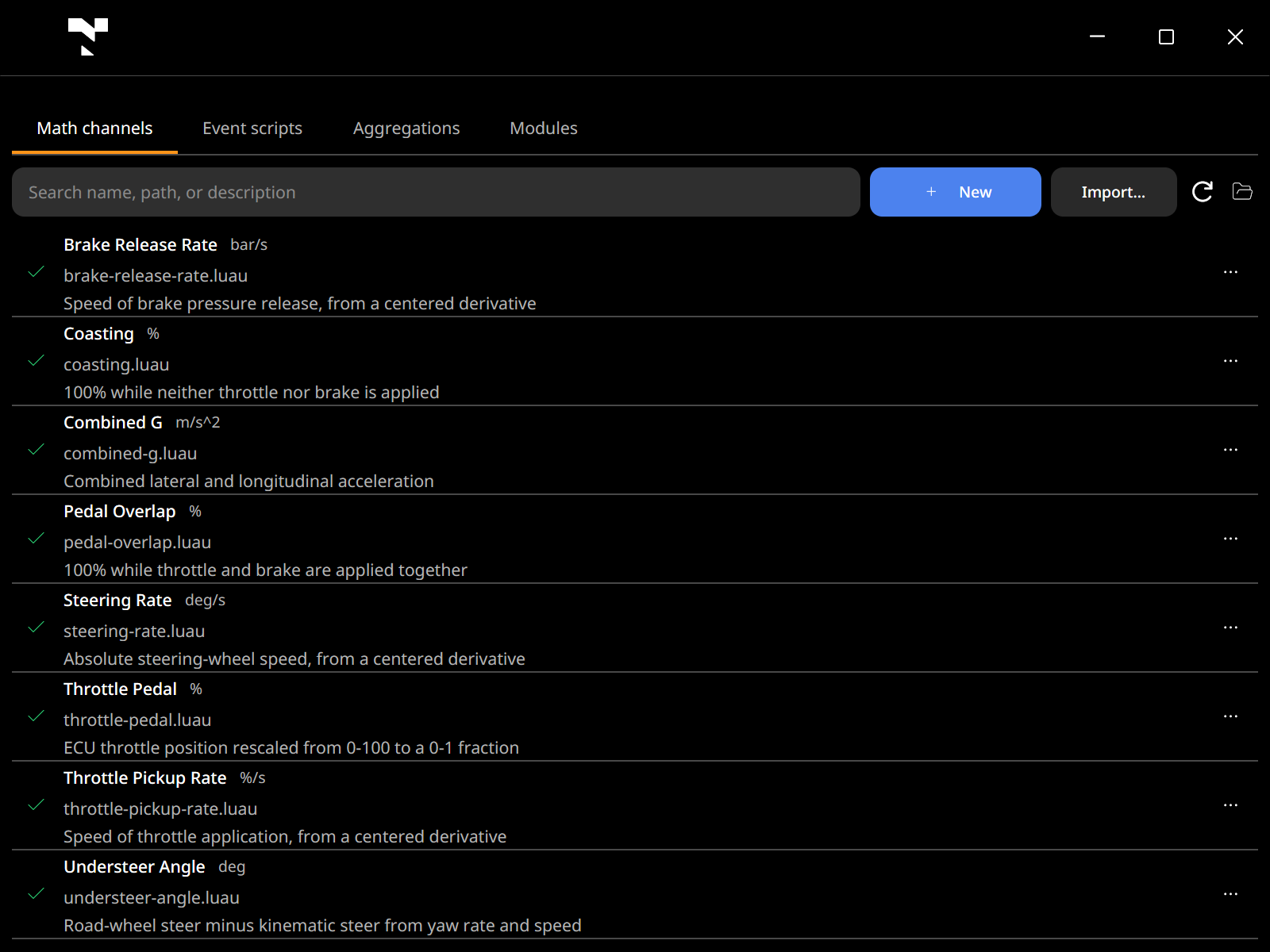

Velocity's Scripts window on the Math channels tab, listing channels such as Brake Release Rate, Coasting, Combined G, Pedal Overlap and Understeer Angle with their units, files and descriptions.

Cloud integration

Velocity connects to Newton Cloud and to Newton devices on track.

  • Your team's library

    Open the current event, outings, laps and track definitions from Newton Cloud directly.

  • Upload

    Share outings, laps and track definitions with the team.

  • Live data

    Analyze live data from Newton devices while the car is on track.

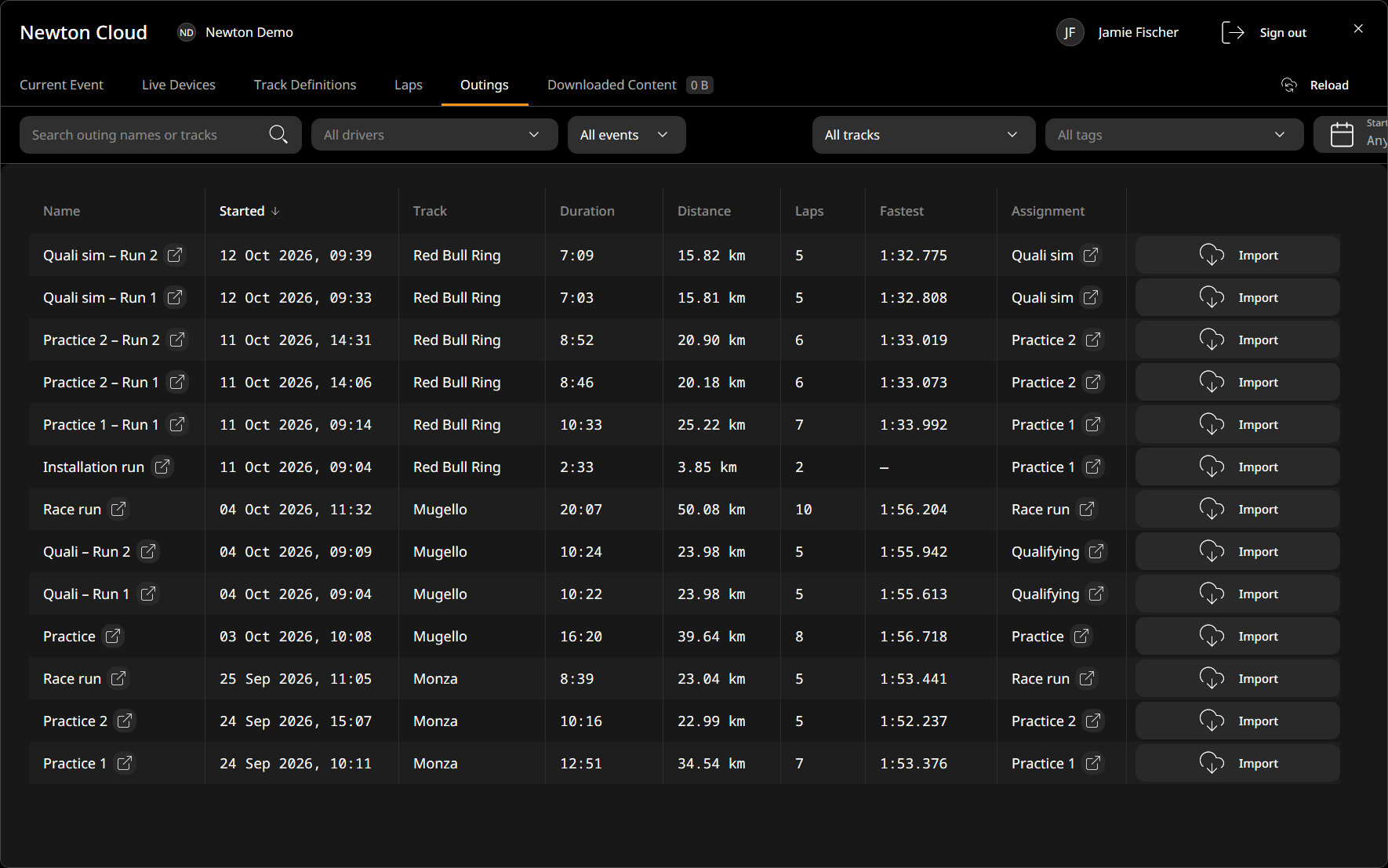

Velocity's Newton Cloud window for the team Newton Demo on the Outings tab: 13 outings at Red Bull Ring, Mugello and Monza with start time, track, duration, distance, laps, fastest lap and session, each with an Import button.

AI integration

Velocity is architected from the ground up to be fully steered by AI agents. Connect Claude or ChatGPT and they set up visualizations, analyze laps and explain where the time is, doing for race car data analysis what AI agents are doing for software.

  • Sets up your analysis

    Ask for a braking comparison and the agent builds the page: plots, track maps and readouts, configured for the question.

  • Analyzes laps

    Compares laps, sectors and drivers and explains the differences with numbers from your data.

  • Builds math channels and event detectors

    Drafts new channels and detectors, checks them against your laps and adds them to your library.

  • Works with the tools you use

    Connect Claude Desktop, Claude Code, ChatGPT Desktop or Codex in Velocity's settings, or script Velocity from the command line.

Included in Velocity Pro.

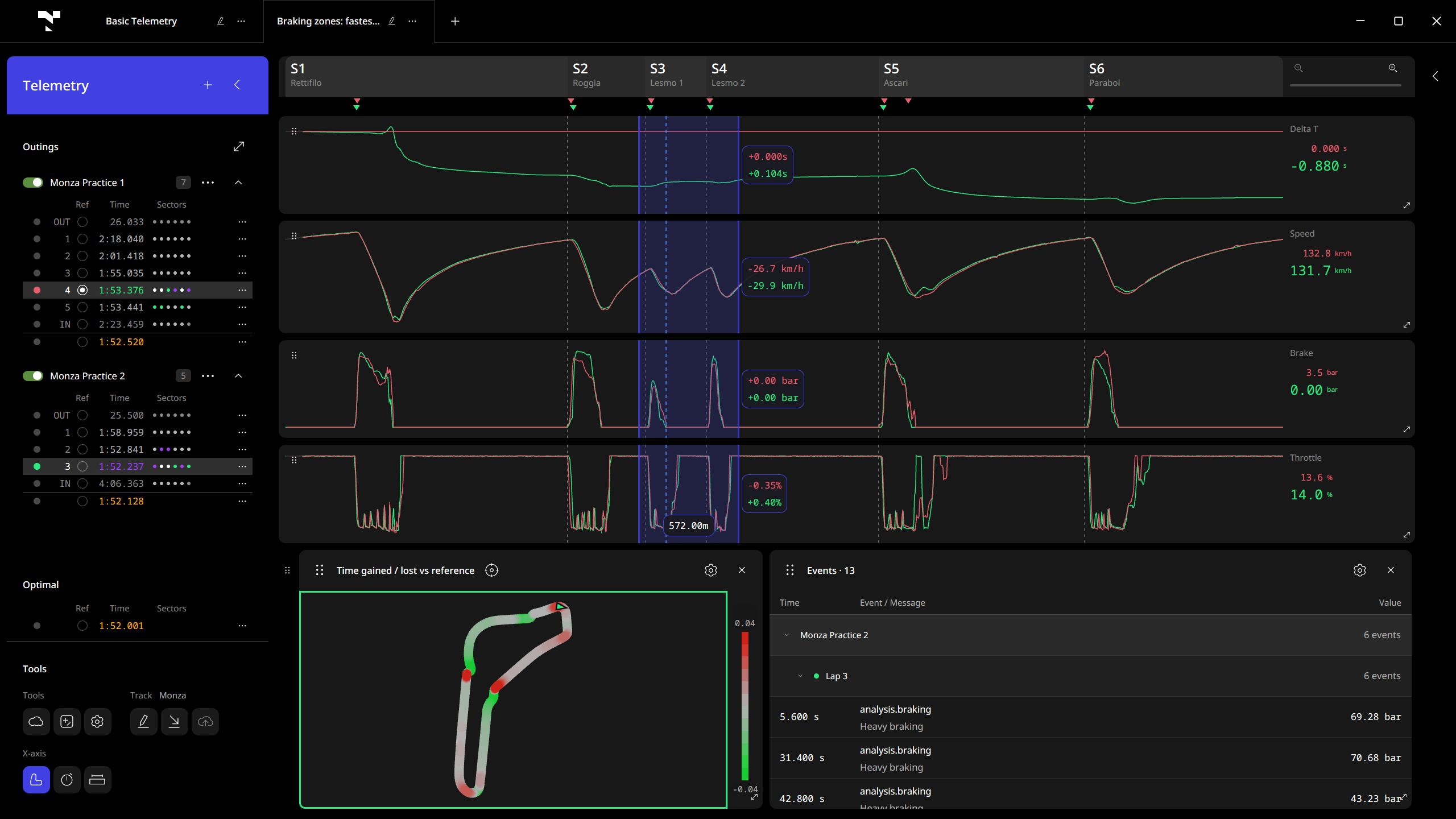

Velocity page 'Braking zones: fastest vs reference' comparing two Monza laps: delta, speed, brake and throttle plots with the Lesmo section highlighted and braking-event markers above them, a time-gain map of the track, and an Events list of the detected heavy-braking zones.
You

Compare my fastest lap with the reference lap and show me where I'm losing time in the braking zones.

Claude
Steps
  1. Step 5: Compared lap and sector times of the fastest lap (Practice 2, lap 3) against the reference (Practice 1, lap 4) telemetry.query_with_reference
  2. Step 7: Checked channel mappings of Monza Practice 2: no throttle, brake, steering or gear mapping; logger channels ecu_ath, log_pbrake_f, log_asteer, ecu_gear exist telemetry.channels
  3. Step 9: Mapped throttle, brake pressure, steering, gear and RPM to the logger channels in Monza Practice 2 source_configuration.configure
  4. Step 16: Created page 'Braking zones: fastest vs reference': Delta T, Speed, Brake and Throttle plots, a time-gain track map (±0.04 green/red scale) and a lap table, with the Heavy Braking detector marking every braking zone pages.compose
  5. Step 18: Highlighted the Lesmo braking zones (2034–2606 m) as the comparison range cursor.set_comparison_range
  6. Step 22: Added an Events list of the detected braking zones (peak brake pressure per zone) for both laps widgets.create

Your fastest lap (Monza Practice 2, lap 3, 1:52.237) is 1.139 s quicker than the reference (Practice 1, lap 4, 1:53.376), and most of that comes from braking zones: Rettifilo −0.49 s (4.7 km/h more minimum speed, full throttle 17.5 m earlier), Ascari −0.23 s and Roggia −0.19 s.

Where you lose time is the two Lesmos, +0.10 s across the highlighted section:

  • Lesmo 1, +0.08 s: you brake at the same point (2,094 m vs 2,096 m) but come off the brake 10 m earlier, carry 0.4 km/h less minimum speed (123.8 vs 124.2 km/h) and reach full throttle 11 m later.
  • Lesmo 2, +0.03 s in the corner, then another +0.07 s on the run to Ascari: full throttle comes 10 m later, so you are about 2 km/h slower onto the straight (157 vs 159 km/h at 2,650 m).
  • Parabolica is a wash (−0.002 s): you brake 7.5 m earlier and carry 5.2 km/h more minimum speed, but get back to full throttle 84 m later than on the reference.

I built a 'Braking zones: fastest vs reference' page with delta, speed, brake and throttle plots, a time-gain map and the detected braking zones; the cursor is on Lesmo 1 and the Lesmo section is highlighted.

A real session: Claude, connected to Velocity, built this page and answered with numbers from the loaded laps.

Works with your data

Velocity loads Newton recordings, Racelogic VBOX files, Pi Toolbox exports and CSV files, and it is just as useful for your sim racing data from iRacing.

  • Newton recordings

    Telemetry and video recorded by Newton devices (.vel, .xvel, .avel).

  • Sim racing

    iRacing telemetry (.ibt), analyzed with the same tools as your real-world data.

  • Racelogic VBOX

    VBOX recordings (.vbo).

  • Pi Toolbox

    Pi Toolbox exports (.txt, .xls).

  • CSV

    Any data you can export as CSV.

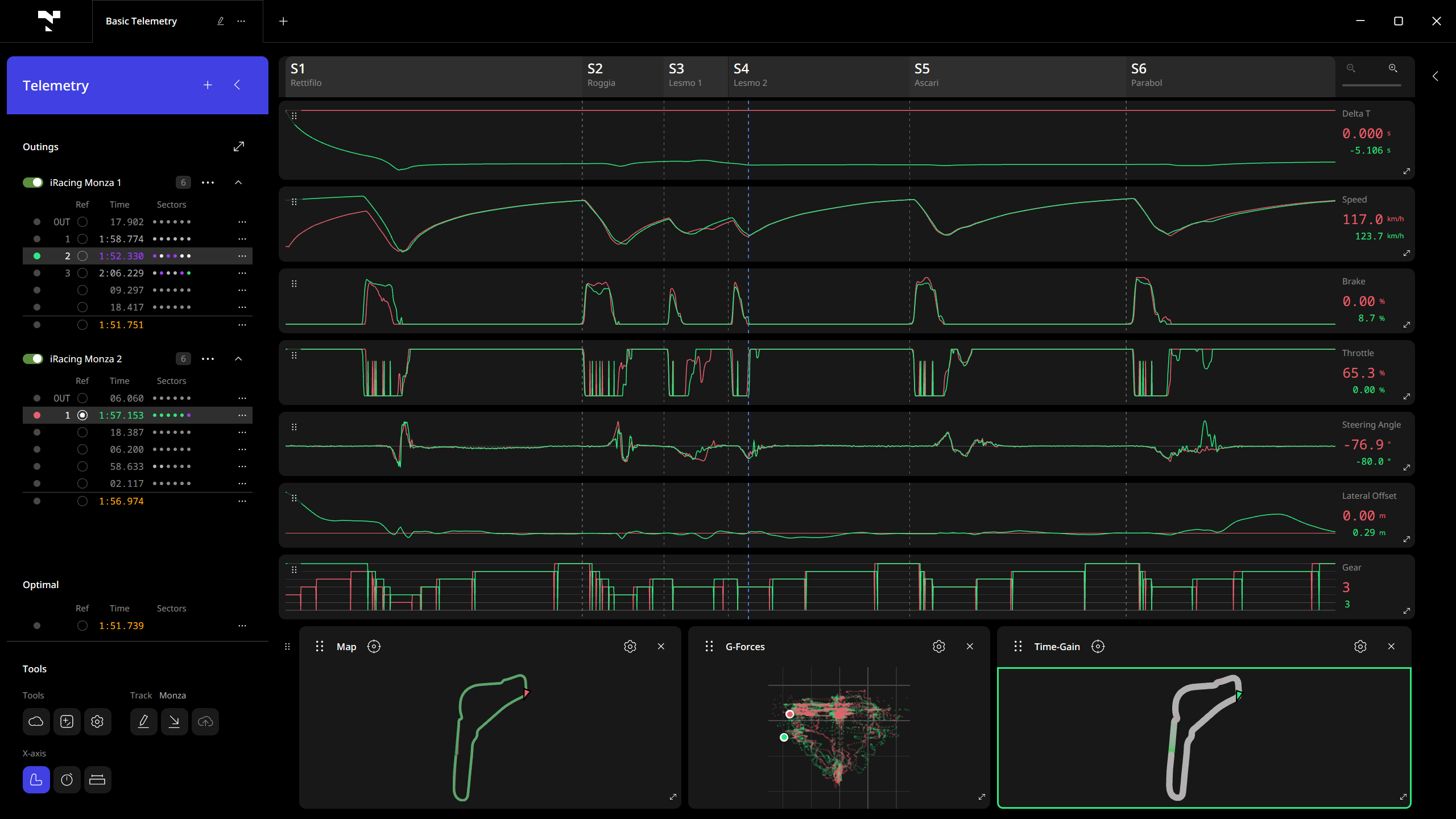

Velocity's default dashboard with two iRacing laps of Monza: the outing and lap list with lap and sector times, delta, speed, brake, throttle, steering, lateral offset and gear plots, and map, G-force and time-gain widgets.

Plans and pricing

Choose Sim or Pro when you need more formats, AI integration, math channels or cloud integration.

  • Velocity Free

    For files recorded by Newton devices.

    €0

    Download
    • Newton files (.vel, .xvel, .avel)
    • Requires a free Newton account

  • Velocity Sim

    For sim racing and simulator work.

    €5 per month

    Subscribe to Sim

    Everything in Free, plus:

    • iRacing telemetry (.ibt)
    • CSV files

  • Recommended for professional teams

    Velocity Pro

    For race engineers and teams.

    €25 per month

    Subscribe to Pro

    Everything in Sim, plus:

    • Every supported format, including Racelogic VBOX (.vbo) and Pi Toolbox exports
    • Math channels
    • Event detectors
    • Cloud integration, including live data from Newton devices
    • AI integration for Claude and ChatGPT, including the MCP server and the Velocity command line

Prices include VAT.

  • Every plan needs a Newton account, including Free.
  • Paid plans run on one computer at a time. Move your license to another computer whenever you like.
  • Switch plans or cancel any time.

Velocity for teams

Teams buy Velocity Pro seats in Newton Cloud. Any team member can use a free seat, and a seat follows its member from one computer to another.

Buy seats in Newton Cloud

Supported files

Format Files Plans
Newton .vel, .xvel, .avel All plans
iRacing .ibt Sim and Pro
CSV .csv Sim and Pro
Racelogic VBOX .vbo Pro
Pi Toolbox export .txt, .xls Pro
